ZYXEL A6000 10Gbps ROUTER Dual-Band Wireless PON VoIP IAD with SFP

ZYXEL A6000 10Gbps Router Dual-Band Wireless PON VoIP IAD with SFP

Network device for compatible fibre, router or lab setups when the ISP/network requirements match the unit.

Compatibility

• Check ISP provisioning, WAN/PON/SFP requirements, firmware, admin access, VoIP needs and power requirements before ordering.
• Internet speed and WiFi performance depend on service plan, ISP provisioning, client devices, placement and network environment.
• This device is not guaranteed to work with every ISP or fibre service.

Includes

• 1 x ZYXEL A6000 router / IAD unit.

Testing

Testing scope: basic power-on operation only.

Model and Connections

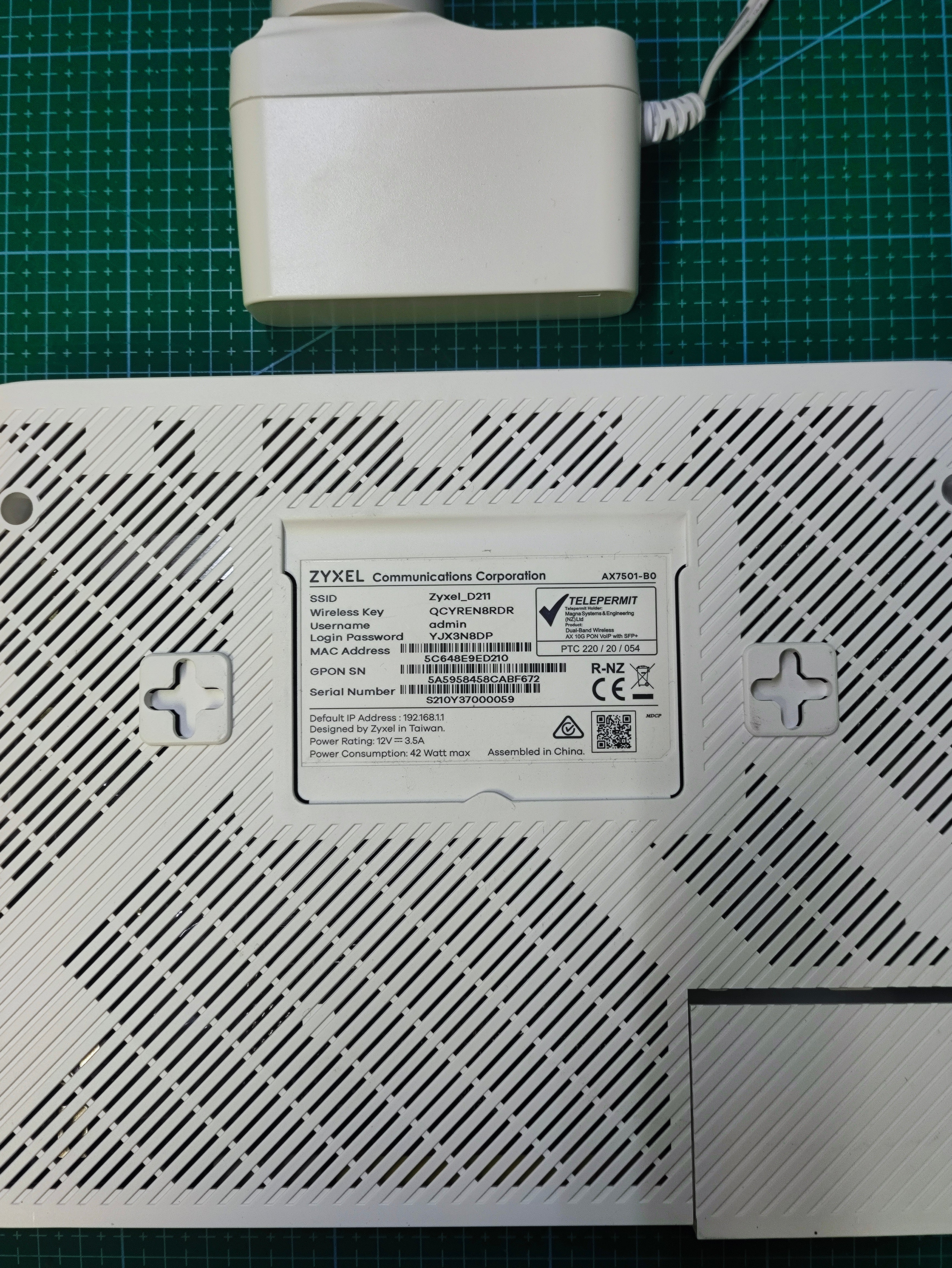

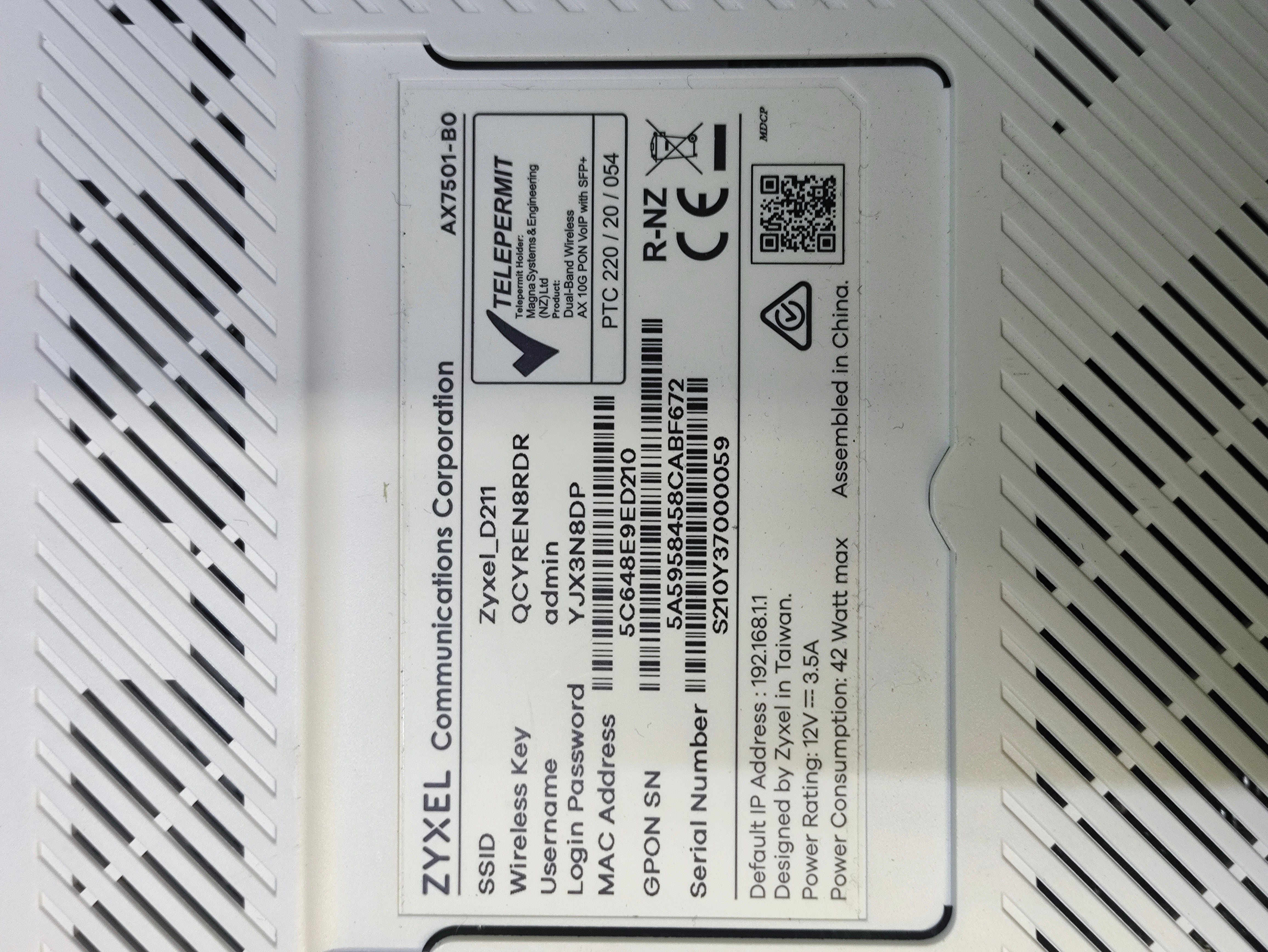

• Model shown on the product label: Zyxel AX7501-B0.

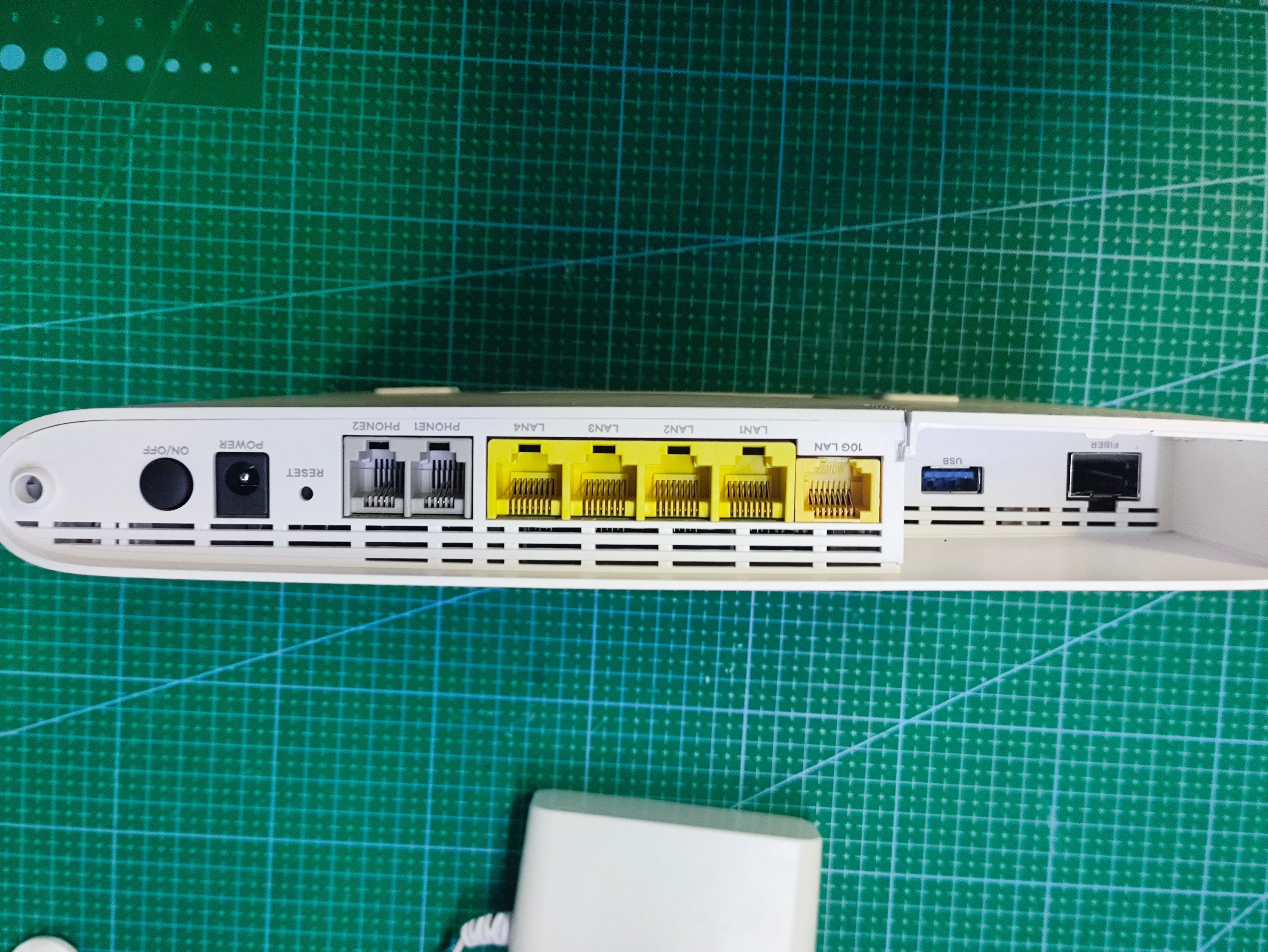

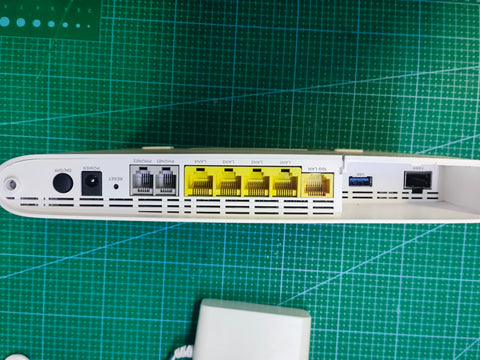

• Ethernet: one 10G LAN port plus four Gigabit LAN ports.
• Fibre uplink: SFP+ port requiring a compatible transceiver and provider configuration.
• Other connections: USB port and two analogue phone ports for supported VoIP service.
• Device power rating shown on the label: 12V DC, 3.5A.
