DDR5 Desktop Computer Memory Slot Motherboard Repair Test Tool

DDR5 Desktop Memory Slot Motherboard Repair Test Tool

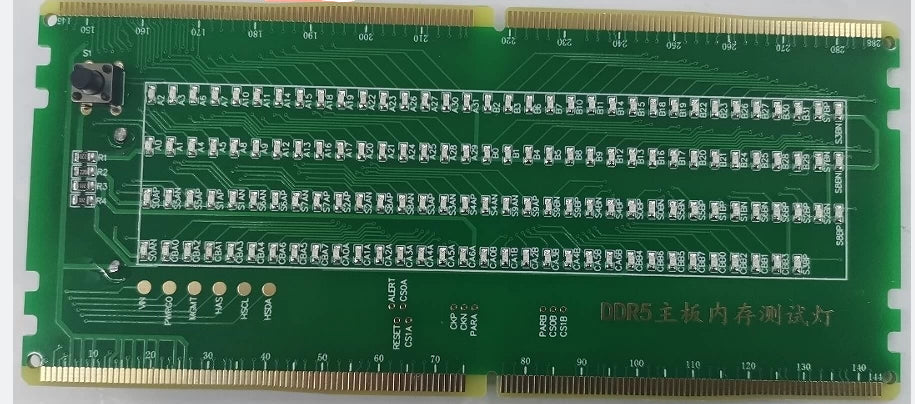

DDR5 memory-slot LED diagnostic tool for motherboard repair technicians. It can help indicate possible open or short conditions on memory-slot lines, but it is not a complete motherboard diagnostic system.

Listed Details

• Type: DDR5 memory slot test light / diagnostic card.

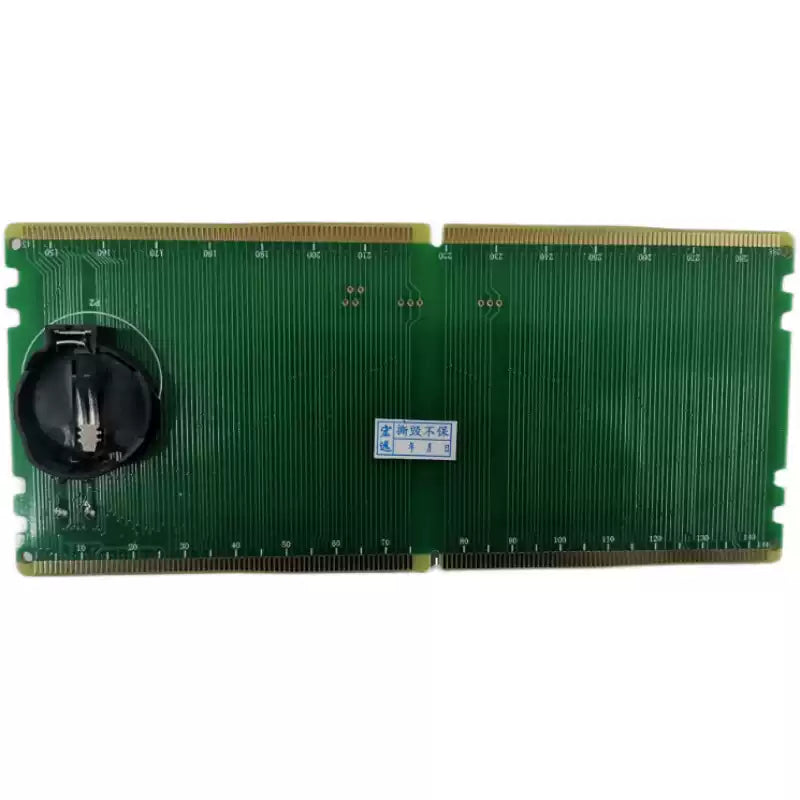

• Power: uses CR2032 battery as listed.
• Designed for use with DDR5 memory slots in compatible desktop motherboard repair workflows.

Includes

• 1 x DDR5 memory slot test tool.

Use Notes

• LED patterns can help guide diagnosis, but results must be interpreted by an experienced technician.
• A normal LED pattern does not guarantee the motherboard, CPU, RAM or BIOS is fully working.
• An abnormal LED pattern can indicate a possible pin, open-circuit or short-circuit issue, but further testing is still needed.
• Only use with supported DDR5 slot layouts.
